Meccanica Besnatese is producing linear tables for handling objects, loads as well as for developing automatism in general. Linear tables are modular tables supporting movements according to the directions of cartesian coordinates and with multi-axis orientation. Movement occurs on roller guides and ball screws.
The linear tables manufactured by Meccanica Besnatese reproduce the dimensions defined by international
standards, or they are manufactured according to the customer’s needs..
NEW | Direct Drive Linear Tables
- Limited maintenance
- Fewer applied components
- No clearances
- Increased shifting speed
- Improved system response
- Fluent and silent movements
- High positioning precision
Tables on crossed-roller guides (TV series), steel or cast-iron structure
- Compact, maximum rigidity and accuracy, travels from 25 to 200 mm
- Fields of application: tool machines and precision equipment for grinding, profiling wheels,milling, drilling and tapping; measurement and inspection systems; devices for scientific research; optical and medical instrumentation.
Precision tables TV3P TV4P series
- High load capacity thought the recirculating roller skates
- Ideal for dirty environments: extreme resistance to residues, processing dust
- Bellows or telescopic covers
- Centralized lubrication system with dispensers to optimize the lubricating oil

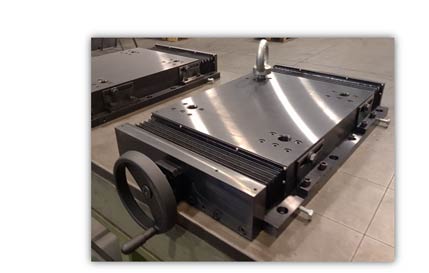

Precision tables TV5 TV6 series
- Load capacity for exceptional strains thought the flanged shoes with recirculating rollers
- Tables customizable in every aspect
- Centralized lubrication system with dispensers to optimize the lubricating oil
- Ball or trapezoidal screw
Tables on track guides with ball sliding blocks (BB series)
- Medium accuracy, travels from 100 to 500 mm, aluminium structure
- Fields of application: machines and equipment for assembly; handling and robotics; light machining; industrial machine tools in general, in the food sector, processing of plastics, rubber, compound materials, resin, etc
Tables with bearing sliders (TC series)
- Light structure, low-cost, travels from 100 to 420 mm
- Fields of application: general-purpose

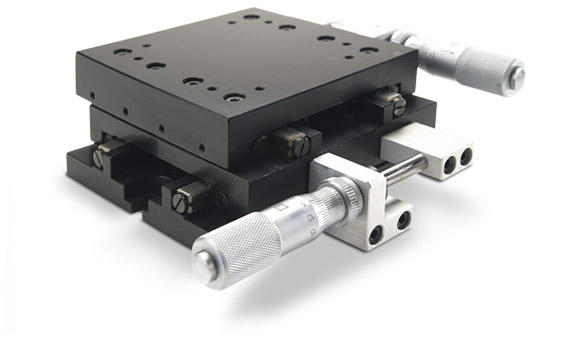

Tables with precision cross roller gides (TR series)
- Ideal solution for item handling processes
- In 4 sizes, with travels ranging from 12 to 25 mm
Positioning tables (TPGA series)
- Perfect for heavy machining thanks to their high stability
- Fields of application: general-purpose
- In 2 sizes, with travels ranging from 25 to 75 mm
Positioning tables (UMB series)
- Highest reliability with reduced overall dimensions, the highest rigidity as well as sliding capacity
- Fields of application: general-purpose
- Travels ranging from 60 to 420 mm
Control slides (TRP series)
- Constructed in hard anodised aluminium
- Fields of application: general-purpose
- Travels ranging from 15 to 50 mm
- Accessories and variants: vertical mounting, mechanical analog position indicator, axis drive with stepper motor, swivel base, swivel base, horizontal-axis mounting
Control and position slides TRP 80
- Structure in anodized aluminium, guides in stainless steel
- Fields of application: general-purpose
- Travels ranging from 50 to 150 mm
Control and position slides TRP 150_N
- Structure in anodized aluminium, guides in stainless steel
- Fields of application: general-purpose
- Travels ranging from 100 to 250 mm
Special tables
Just as for manufacturing on third parties’ account, Meccanica Besnatese offers prototyping also in this field.
The linear tables by single or multi-axis movement are manufactured according to the customer’s needs starting from the draft of a specific project, the choice of the most suitable materials up to real machining as well as final inspection and the company’s certification attached thereto.
The product is customised according to specific technical requirements as a result of the cooperation and confrontation between the company and the customer.
Rotary tables
- Can be interfaced to as modules of BB series
